Saturday, June 04, 2011

Drawer pulls

The drawer pulls we had built for us don't have an edge to hide any mistakes made when routing the holes they are placed in. It was very important to me that no mistakes be made since I was not going to build a whole new drawer. I also thought attempting to patch any mistake would not be acceptable. A custom form or a template was necessary to meet my goals.


My good friend Chris, who is an excellent craftsmen and has been taking classes at Red Rocks for many years, suggested I use a method he'd learned while in class. He said the method was used when a joint was required to fit exactly with another non-standard joint. The method involves Bondo and Petroleum Jelly.





To create the form/template, coat the object with Petroleum Jelly, mix the Bondo, place it around the object, and let it dry. The Petroleum Jelly prevents the Bondo from bonding with the object. It worked quite well for this project. Here's a picture of the template created by the hardened Bondo.



Removing the drawer pull from the hardened Bondo was quite easy. I drilled a hole in the back of the plywood and pushed the drawer pull out from behind. I didn't have to worry about damaging the drawer pull since it is made out of some hard metal.


Using a 1/2" bearing flush router bit, I created the custom templates I would use when routing the cabinet drawers.


Here's a picture of the front of a template with a drawer pull inside.

Here's a picture of the back a drawer pull inside the plywood template. Quite a nice fit!

After removing the hardened Bondo from the plywood with a hammer and sandpaper, I then routed the drawer faces using the three templates. It is difficult to make that first cut into something you've worked so long and hard on!


Here's an up close picture of the finished product. I'm really pleased how it turned out.


All three drawer pulls installed with drawers in the cabinet.



The next task for this project is the drawer front for the bottom drawer. My friend Chris will be helping me. I'll start this after main doors are installed. Thankfully that isn't my job.

Sunday, March 27, 2011

Castlewood Canyon




Yesterday, some highschool buddies and I went hiking at Castlewood Canyon in Franktown CO. It's a hidden gem out in the plans southeast of CastleRock CO.



View Larger Map







We had to cross the stream a few times.






Here we are at the end of the trail.



Friday, March 18, 2011

TV is installed




The TV is installed in what may be its final resting spot. There is only about 1/2" clearance all the way around it.

Posted by Picasa

Wednesday, March 09, 2011

More progress on the cabinet

Today I installed the last glass shelf and moved all our electronic components into the media cabinet. It is really starting to come together.

Joe M. should be coming out sometime to install the doors for the media cabinet. After that is done, then I can start on the front for the bottom drawer.

The drawer pulls still have to be installed too.

Monday, March 07, 2011

Hardware for the tall drawers

The media cabinet I've been working on has three tall drawers. There is about a 1/4" gap between them, not enough for little or big fingers to be able to open them easily.





We decided on using a recessed drawer pull, but we couldn't find one we both liked, so we went custom. One of the guys at the 23rd ave Sculpture Studio, John "Wild" Mann, created some drawer pulls for us based off of sketch I made.



Sunday, March 06, 2011

Glass Shelving

I installed the 3/8" thick glass shelving in the media cabinet today. I have one more to do, but I need to have the shelf trimmed so it will fit nicely.

Friday, March 04, 2011

Entertainment Cabinet Continued

Over the past year, with my Dad's help, I've been building an entertainment cabinet. We purchased plywood from Austin Hardwoods in April 2011 and started construction. We made great progress over a week or so getting the general structure cut and built. Over the last 10 months I've been putting together the tall drawers, ironing on the edging to hide the plywood ends, and putting the finishing clear coat on everything. Just recently I've started installation.

Here are some pictures.

Empty Space



Bottom Drawer Only


Main Structure with a Tall Drawer


Bottom Drawer with Support


Top Shelf


Top Shelf with Fan and I.R. Repeater


Glass Shelving Support

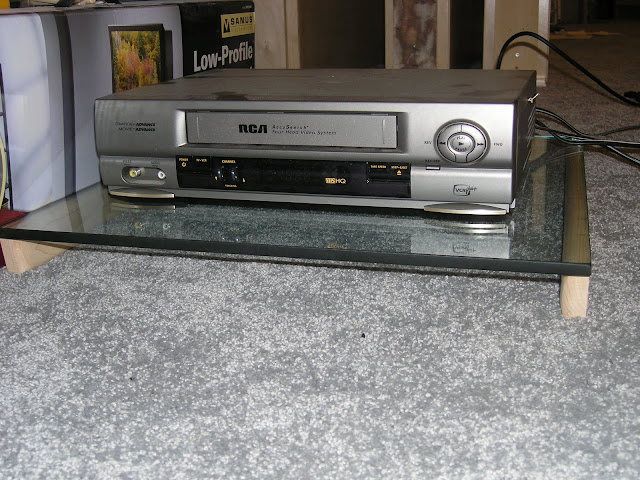

VCR on a Glass Shelf


Glass Shelf with hole for cabling



Bottom of top shelf with holes for cabling


Wall Mount for TV
